LEVELFIX CROSS LINE LASER CCL260

Green 3D multiline laser for professional use

Go to other models

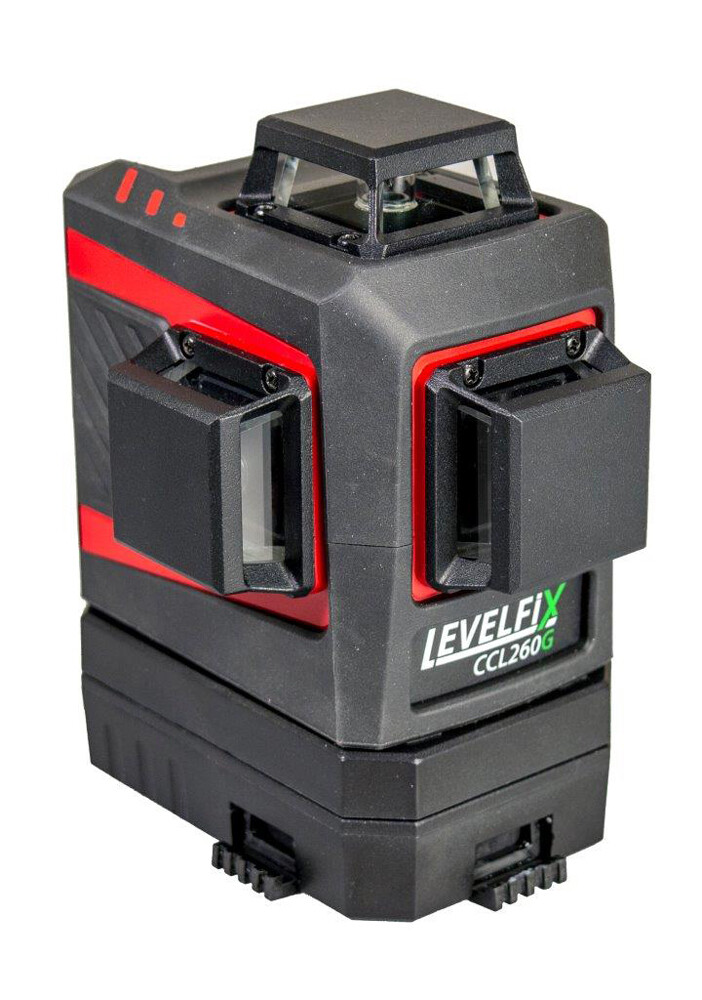

CCL260G is multifunctional 3D laser. With three special lenses, it projects a 360-degree horizontal line and two 360-degree vertical lines.
Article number: 110304

Productvideo's

  • Description
  • Features
  • Technical specifications
  • Documents
  • Related products

Description

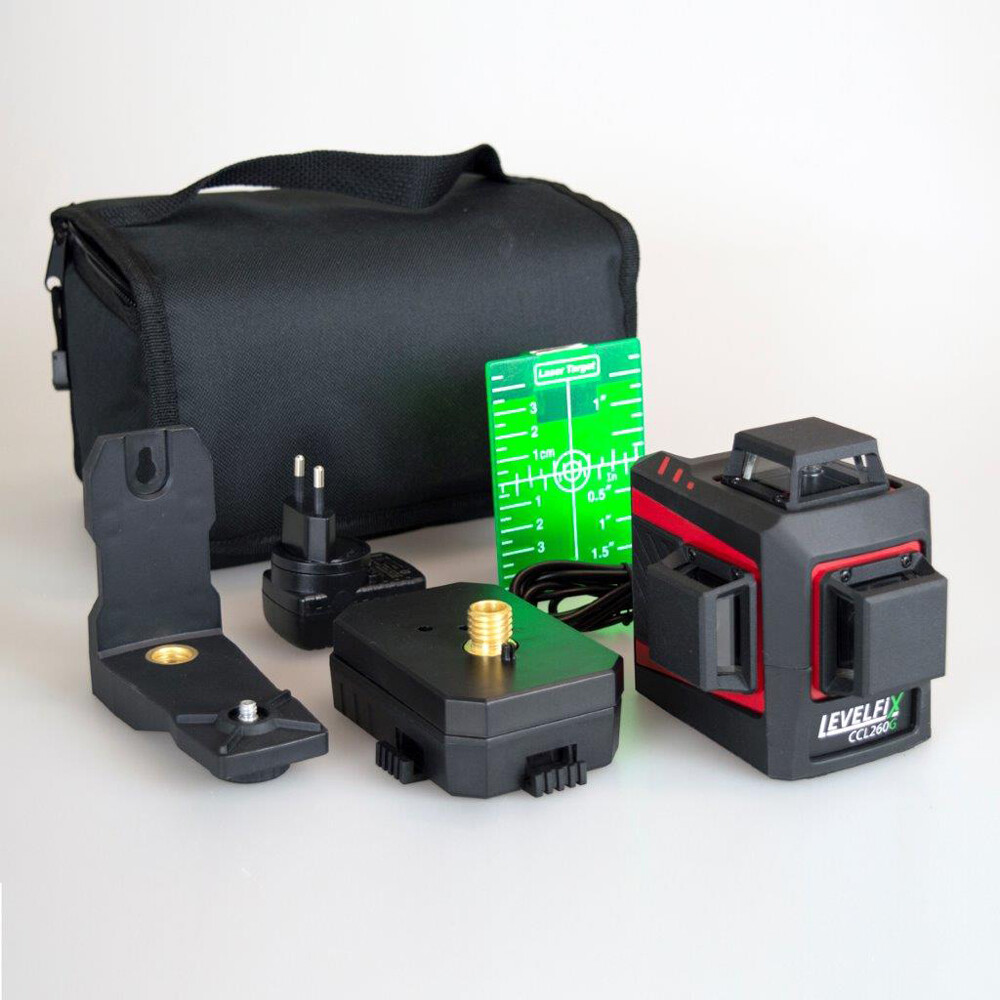

CCL260G is multifunctional 3D laser. Thanks to the three special lenses, it projects a 360-degree horizontal line and two 360-degree vertical lines. You can use this laser to mark out level lines, create a plumb line and project a cross line on the wall, ceiling and floor. This is perfect tool for tiling, installing windows and doors and all kind of indoor work. The CCL260G comes with a handy positioning base what makes aligning tiles and studs very easy. The bright green lines of the CCL260G have a range of up to 30 meters, which can be extended to 50 meters with a receiver (not included).

Features

  • Multi-functional self-leveling 3x360° 3D multiline laser with green beams.
  • With the SmartBase platform's fine adjustment screw, aligning the laser lines is effortless.
  • High-power green laser diodes produce bright beams.
  • With the Levelfix Connect app, you can control the laser's functions using your smart device.
  • Receiver function with LLD100GR receiver (accessory), with a range of 50m.
  • Wall bracket with magnets
  • Battery, charger and battery adapter
  • Green sight plate
  • Li-ion battery
  • Charger

Technical specifications

Range:
20 m
Range with receiver:
40 m
Accuracy per 10 m:
3 mm
Laser colour:
Green
Line qty:
3 pcs
Line beam:
360 °
Line horizontal:
Line vertical:
Laser class:
525 nm
Laser category:
2 m
Power source:
Battery / AC
Battery type:
Li-ion
Operating time:
8 h
IP class:
IP54
LEVELFIX Connect:
SmartBase:
SmartFix:
SmartLock:
Receiver Function:
HighPower Diode:
Product measurements:
10 x 10 x 10 mm
Product weight:
4 kg
Package measurements:
300 x 300 x 300 mm
Package weight:
1.2 kg
Warranty period:
1+3 mos.
